More Details
Description

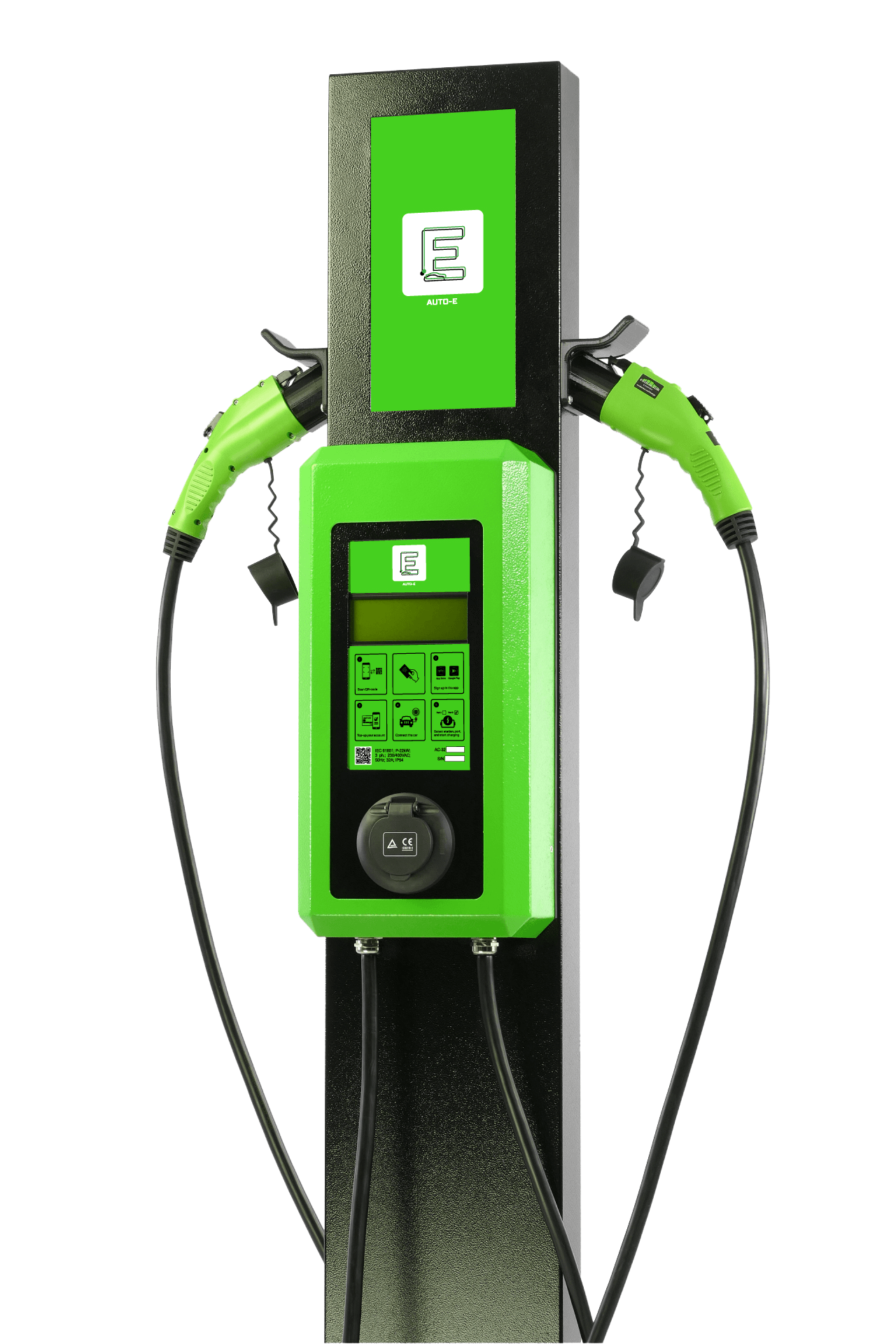

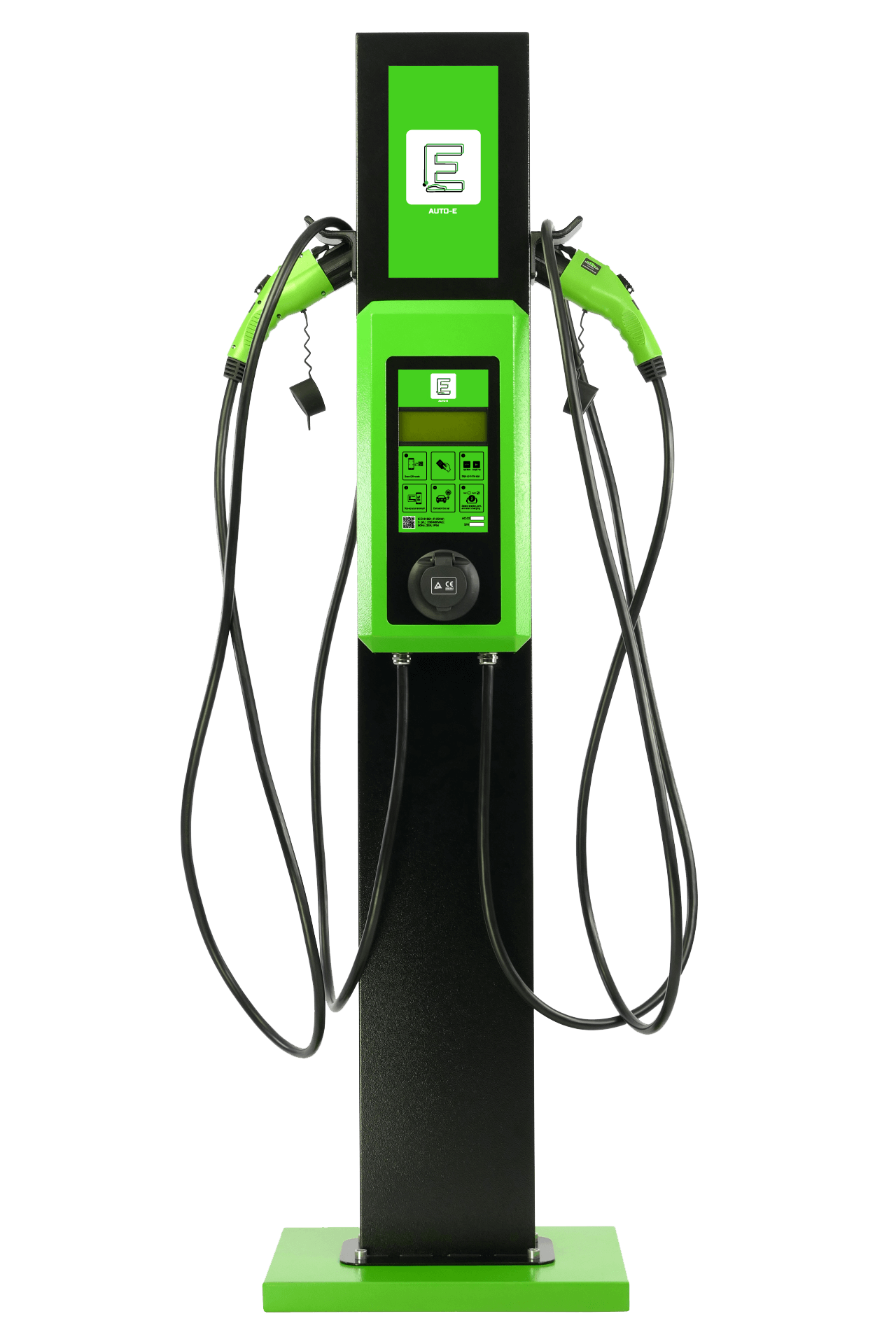

The EF AC-W22-J7M7 is the best product in the series. Equipped with 3 charging outlets (one port and two plugs). Ideal for using at home. Great for arranging public or workplace EV charging facilities.
Other EF AC-W22-J7M7 features in a nutshell:
- Fast charging (up to 22 kWh), which enables to reduce charging time to a couple of hours even for long-range electric cars.
- Type1 and Type 2 charging, which makes the EV charger fully compatible with almost all vehicles
- Long built-in cables, which enables Plug&Go feature and a large coverage
- IP 55 enclosure protection, which guarantees no liquid or dust will get into the unit and enables the outdoor installation and use under any weather conditions (even in the rain)
- EN61851-1: 2011 compliance, which guarantees safe use and high reliability of the device
- OCPP control, which allows charging activation via the mobile application
Specifications
Here, you will find the answers to all your question about the EF AC-W22-J7M7 specifications:
- What power supply it requires: AC of 3-phase, 63 A and 400-V
- How much power it consumes in standby mode: 18 kWh
- What ports and/or plugs it is equipped with: one Type 2 port +one Type 2 built-in connector + one Type 1 built-in connector
- What power it outputs: 22 kWh (for charging via Type 2 connector) + 7 kWh (for charging via Type 1 connector), only AC charging
- What its charging efficiency is: >99%
- What its handling feature is: one 4x20 symbol LED display
- What its enclosure protection is: IP-55 rating
- How to mount: on a wall or a stand
- What unit dimensions are: 250х130х500 mm (WxDxH)
- What the package weight is: about 15 kg including all the packaging items
What is included
In the package, you will receive the following items and documentation:
- EV charger EF AC-W22-J7M7, 1p.
- Cable assembly, 2p.: Type 1 cable, 1p. + Type 2 cable, 1p.
- Operating instructions for the EF AC-W22-J7M7, 1 copy
- Passport of the EF AC-W22-J7M7, 1 copy
- Certificate of conformity, 1 copy
- Packaging, 1 piece
Installation process
The EF AC-W22-J7M7 is only for hardwire installation. If you need assistance in EV charger installation, get in touch with us, and we will arrange all the rest.
Here, the installation refers to connecting to the distribution network and includes:
- Checking power and electrical panel capacity for sufficiency (and arranging their upgrade, if they are not sufficient)
- Fixing the EV charger to your circuit
- Testing its functions and operating modes
- Notifying your DNO
In some cases, it may be required to apply for the installation permit prior to the installation. Don’t worry, we will do this paperwork for you as well.
