Description

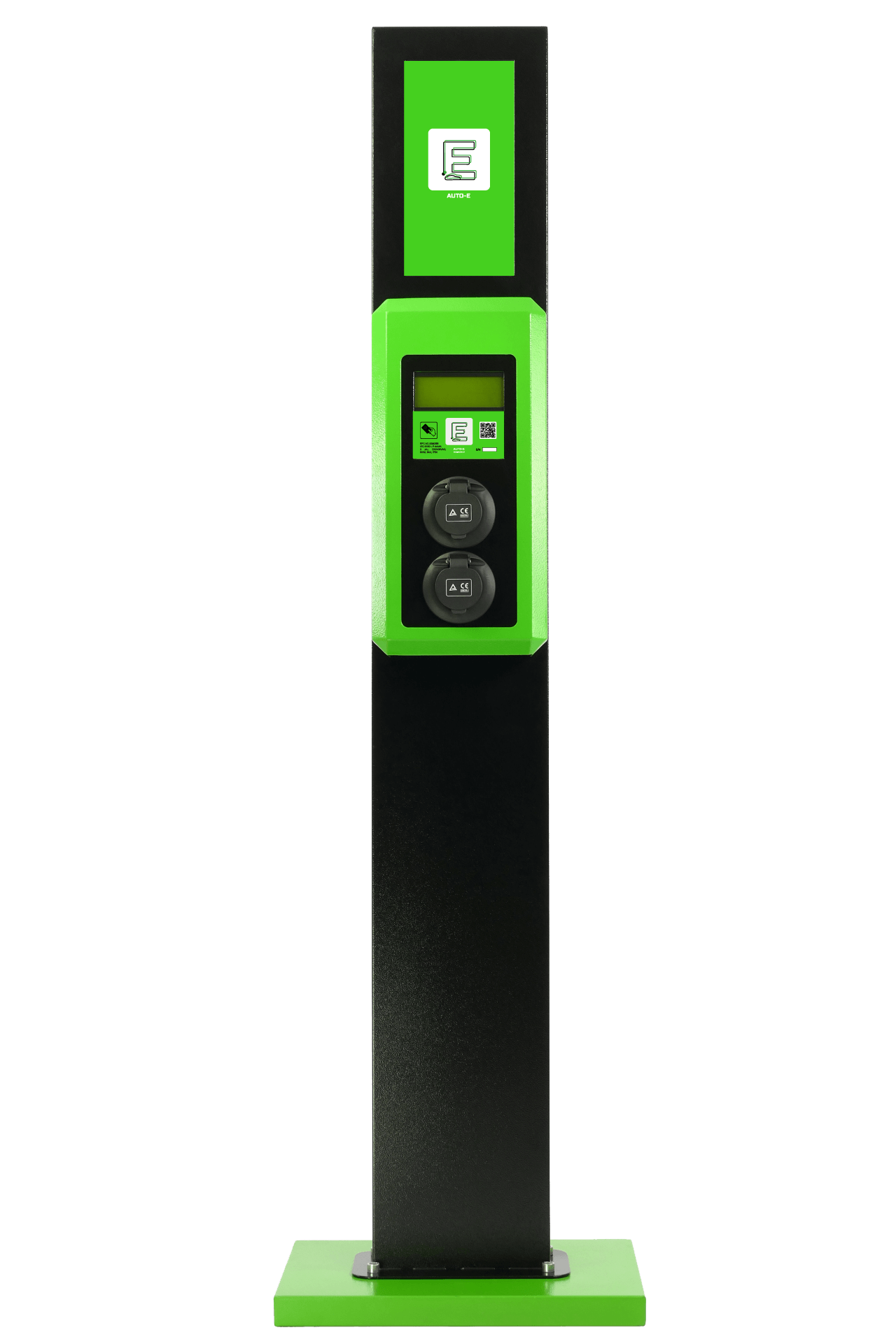

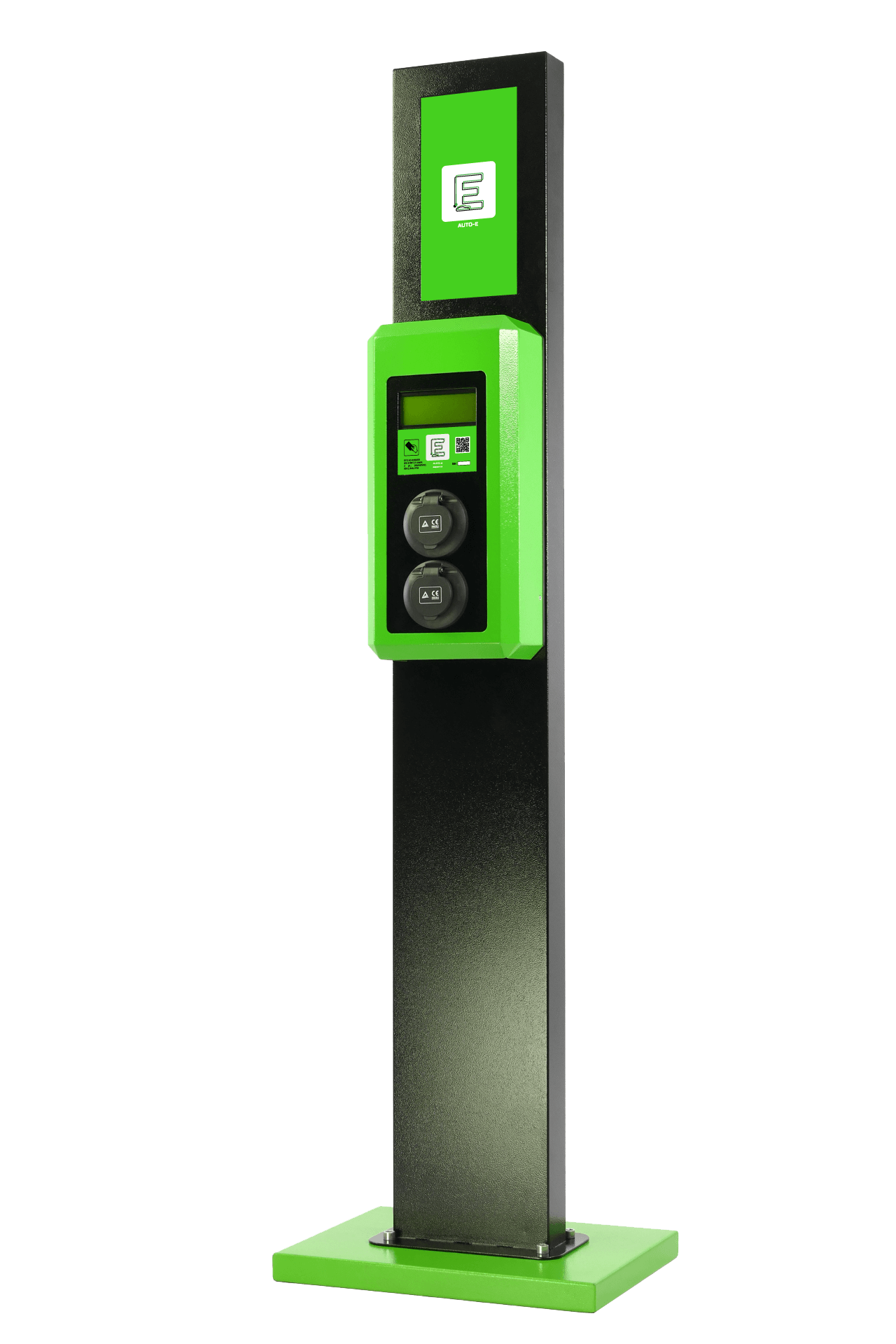

The EF AC-W22x2M is a highly convenient Level 2 solution for those who need to arrange EV charging facilities with an option to serve two cars simultaneously. With its high charging speed, this EVSE is ideal for charging electric vehicles with large batteries. Now, if your on-board charger can accept 22 kWh, you can top up your EV battery in just a few hours.
Explore the main features of the EF AC-W22x2M:
- High power output combined with compact dimensions
- can be used as a home, commercial, or even public EV charger
- Suitable for indoor and outdoor installation due to high electrical enclosure protection
- Easy to activate and control EV charging session via an app
- Safe and fully compliant with technical requirements stipulated in EN61851-1:2011 (confirmed by type approval)
- Benefits with an affordable price
Specifications
The EF AC-W22x2M has the following basic specifications:
- The 3-phase power supply is required with 400-V voltage and at least 63 amps per phase (

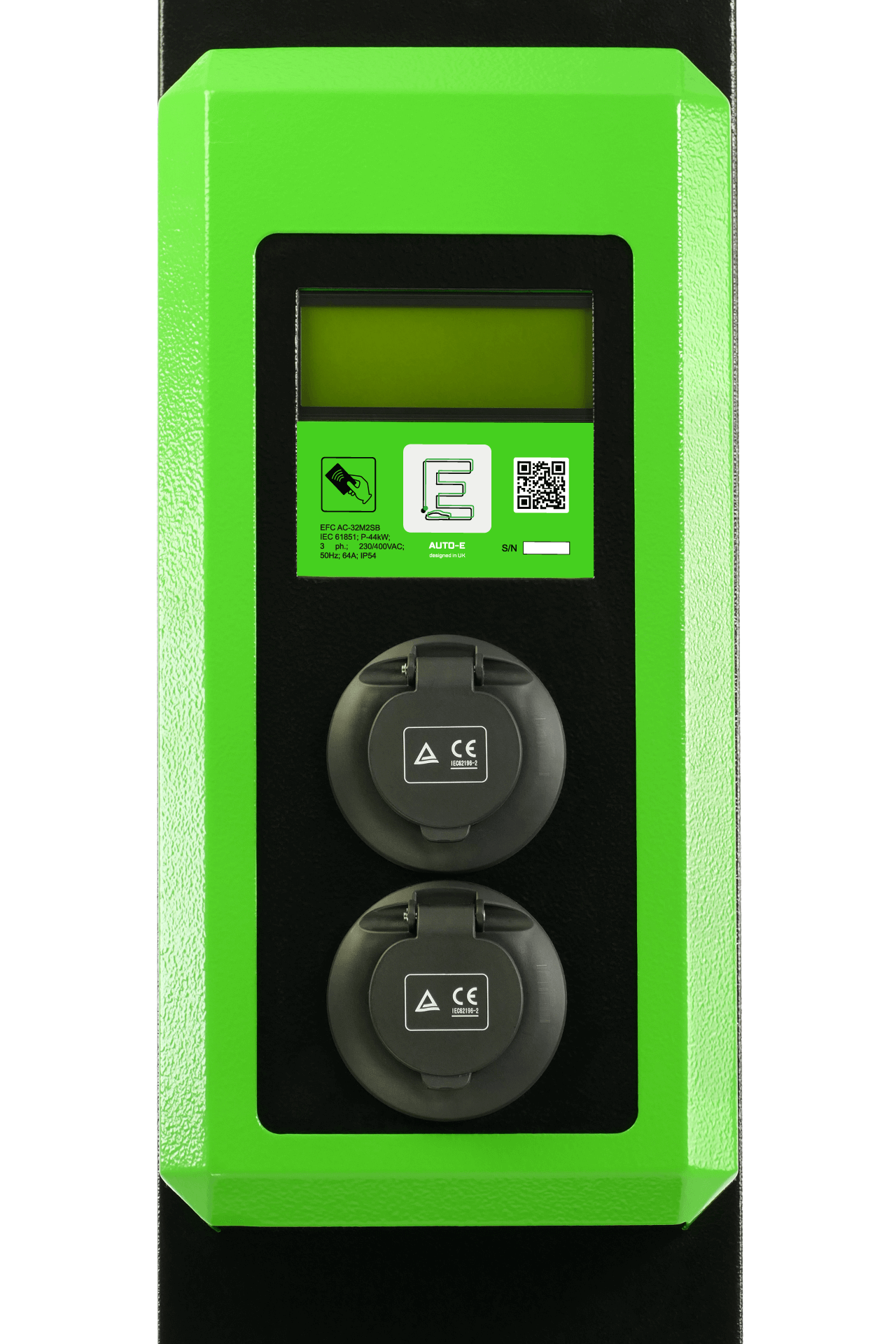

- Equipped with two charging ports for Type 2 connectors, each port delivers up to 22 kWh of AC
- EV charging efficiency is over 99%
- Has a 4x20 symbol LED display
- Power consumption in standby mode is 18 Wh
- Metal case with IP-55 rating efficiently protects the unit against solids and liquids
- The unit is very compact and enjoys W x D x H dimensions of 250х130х500 mm
- The gross weight is 15 kg
- Designed for wall mount
What is included
Here is the list of items included in the package:
- EV charger EF AC-W22x2M, 1 unit
- Operating instructions for EF AC-W22x2M, 1 copy
- Technical data sheet for the EF AC-W22x2M, 1 copy
- Declaration of conformity, 1 copy
- Package box, 1 piece
Installation process
To install the EF AC-W22x2M, contact a qualified EV charger installer or order the installation from us.
The installation includes:
- Assessing your current power capacity and availability of empty slots on your electrical panel and their extension if required
- Getting all required permits and arranging the subsequent notification
- Hardwiring the unit to the mains
- Testing all operating modes of the device
