More Details
Description
The EF AC-WW22M is a powerful tool to top up an electric car battery in a few hours. The charger especially benefits owners of the cars with high input capability of their on-board chargers. To clarify, the EF AC-WW22M can output up to 22 kW.
One of the other strong sides of the EF AC-WW22M are as follows:
- Fast charging (level 2)
- Durable and weatherproof
- Remotely controlled (by OCPP)
- Laconic in design and easy to use
- Safe in use (complies with EN61851-1: 2011)
- Available for home, commercial, and public use
Besides, the product benefits you with its affordable price. Indeed, this is a low-cost solution for those who want to take advantage of fast charging on a tight budget.
Specifications
The EF AC-WW22M has the following characteristics:
- Enables easy wall mounting
- Compatible with Type 2 connector

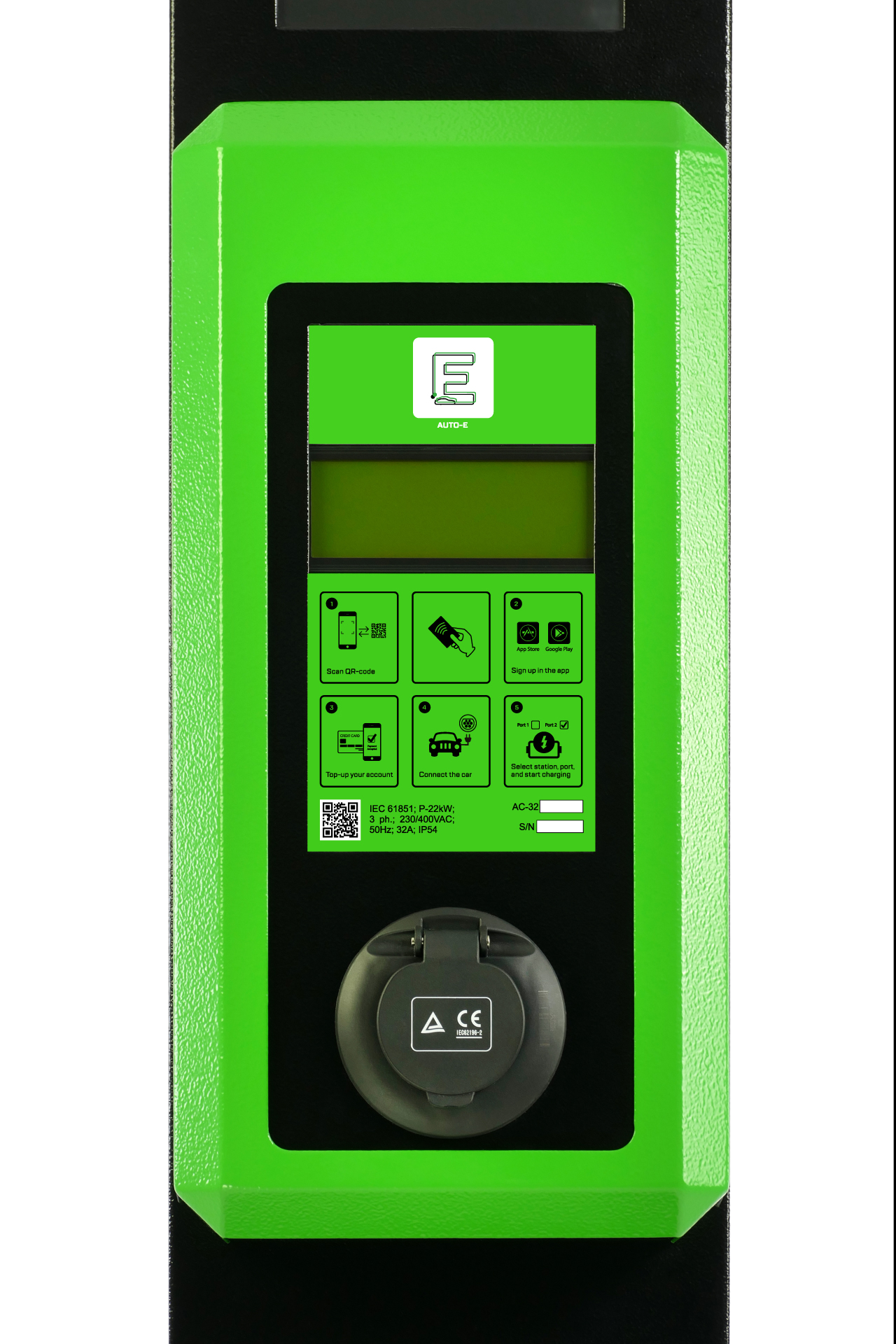

- Equipped with LED display of 4x20 symbols
- Works from AC and requires 3-phase voltage of 400V
- In standby mode, the station consumes only 18 watts per hour
- Outputs 32A, which enables to supply up to 22 kWh of AC with efficiency of >99
- Casing protection class of IP-55 prevents water and dust from getting into the unit
- Has compact dimensions of 250х130х500 (W x D x H, mm)
- Weights 15 kg (including packaging)
What is included
Upon the purchase, you will get:
- Charging Station EF AC-WW22M, 1 unit.
- Operating instructions EF AC-WW22M, 1 copy
- Passport of the product EF AC-WW22M, 1 copy
- Declaration of compliance, 1 copy
- Packaging, 1 piece
Installation process
The station requires the hardwire installation and connection to the circuit via the electrical panel.
We can help you install this EV charger, taking over all the stages of the process:
- Assess your power capacity
- Assess your electrical panel
- Arrange their upgrade if necessary
- Apply for permits and notify your network operator
- Connect the unit to the circuit
- Test its functioning
